Zynq SoC System Architecture
Provides experienced system architects with the knowledge on how to best architect a Zynq® System on a Chip (SoC) device project.
Course
Highlights
This two-day training Provide experiences system architects with the knowledge on how to best architect a Zynq® System on a Chip (SoC) device project.
This course covers:
- Identifying the features and benefits of the Zynq SoC architecture
- Describing the architecture of the Arm® Cortex™-A9 processor-based processing system (PS) and the connections to the programmable logic (PL)
- Detailing the individual components that comprise the PS: I/O peripherals, timers, caching, DMA, interrupts, and memory controllers
- Effectively accessing and using the PS DDR controller from PL user logic
- Interfacing PL-to-PS connections efficiently
- Employing best practice design techniques for implementing functions in the PS or PL
What’s New for 2020.1
- All labs have been updated to the latest software versions
Who Should
Attend
System architects who are interested in architecting a system on a chip using the SoC.
Course
Prerequisites
- Digital system architecture design experience
- Basic understanding of microprocessor architecture
- Basic understanding of C programming
- Basic HDL modeling experience
Course
Benefits
After completing this comprehensive training, you will have the necessary skills to:
- Describe the architecture and components that comprise the Zynq SoC processing system (PS)
- Relate a user design goal to the function, benefit, and use of the Zynq SoC
- Effectively select and design an interface between the Zynq PS and programmable logic (PL) that meets project goals
- Analyze the tradeoffs and advantages of performing a function in software versus PL
Partners
Upcoming Program
- Please keep me posted on the next schedule
- Please contact me to arrange customized/ in-house training
Course Outline
Zynq SoC Overview
Objective: overview of the Zynq® SoC without much detail in any particular area. The stage will be set to enable deeper dives into the features and operations of the Zynq SoC in the following modules.
- Zynq-7000 SoC Block Diagram
- Zynq-7000 Family Highlights
- Zynq SoC Block Diagram – APU
- Zynq SoC Block Diagram – IOP
- Multiplexed I/O (MIO)
- AXI Ports of the PS-PL Interface
- PS Memory Resources
- PL Clocking Sources
Zynq SoC Application Processor Unit (APU)
Objective: explores the individual components that comprise the APU. For the most part, the APU is explored in isolation from the rest of the PS and PL.
- The Application Processor Unit (APU)
- Arm Cortex-A9 Processor Features
- Making and annotating plots
- Memory Management Unit
- TrustZone
- Processor Caches
- Cache Coherency Between processors
- Triple Time Counter (TTC)
- Generic Interrupt Controller (GIC)
Zynq SoC Neon Co-Processor
Objective: explores the Neon co-processor that is the companion to each Cortex™-A9 processor in the Zynq® SoC processor system (PS) located in the application processor unit (APU) module.
- Introduction to NEON and Vector Processing
- NEON Advantages
- Floating-Point Unit (VFP)
- NEON and FPU Instruction Formats
- How to Use the NEON Co-Processor
- What is OpenMAX?
- NEON Automatic Vectorizing
- Intrinsics
Zynq SoC Processor Input/Output Peripherals
Objective: introduces the components that comprise the input/output peripheral (IOP) block of the Zynq® device processing system (PS).
- Input/Output Peripherals
- Connecting to IOP
- Multiplexed I/O (MIO) Pinout
- Configuration of PS I/O Peripherals Demonstration
PS Peripherals
Objective: introduces the low-speed peripherals in the Zynq® SoC.
- Low-Speed: UART: Introduces the UART low-speed peripheral
- Low-Speed: CAN: Introduces the CAN low-speed peripheral
- Low-Speed: I2C: Introduces the I2C low-speed peripheral
- Low-Speed:SD/SDIO: Introduces the SD/SDIO low-speed peripheral
- Low-Speed: SPI: Introduces the SPI low-speed peripheral
- Low-Speed: GPIO: Introduces the GPIO low-speed peripheral
- High-Speed: USB: Introduces the USB high-speed peripheral
- High-Speed: Gigabit Ethernet: Introduces the Gigabit Ethernet high-speed peripheral
DMA Controller (DMAC)
Objective: explores the operation of the DMAC, including a lab that demonstrates its operation.
- Eight-Channel DMA Controller (DMAC)
- DMA Controller (DMAC) Block Diagram
- DMA Programming
- DMAC Data Movement Control
- Defining DMA
- DMA Operation Example
- Features of the Zynq SoC DMAC
DMA
Objective: introduces the direct memory access controller.
- Introduction and Features: Introduces the direct memory access controller
- Block Design and Interrupts: Introduces the DMA block design and the DMA interrupts
- Read and Write: Introduces the concepts behind DMA reading and writing
AXI

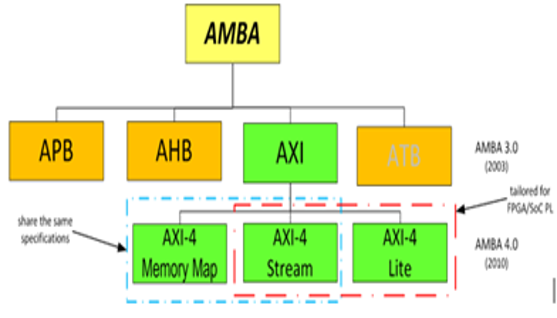

Objective: describes how AXI fits into the AMBA® protocol developed by Arm.
- Introduction: Introduces the AXI protocol
- Variations: Describes the differences and similarities among the three primary AXI variations
- Transactions: Describes different types of AXI transactions
Zynq SoC PS-PL Interface
Objective: Describes in detail the PS interconnect and how it affects PL architecture decisions.
- Interfacing to Programmable Logic
- Clocks and Resets
- Interrupts
- Understanding the PS-PL Interconnect Tradeoffs
- General-Purpose Master AXI Port Features
- General-Purpose Slave AXI Port Features
- Typical ACP Accelerator Interaction
- What are the Differences Between Slave HPx, GPx, and ACP?
Zynq SoC Memory Resources
Objective: introduces and explains the operation of the on-chip (OCM) memory and various memory controllers located in the processing system (PS).
- Zynq Architecture Memory Features
- PS External Memories
- On-Chip Memory (OCM)
- Static Memory Controller (SMC)
- Dynamic Memory Controller (DMC)
- Linear Quad SPI Flash Controller (QSPI)
Zynq SoC Booting
Objective: explains the boot process of the PS and configuration of the PL. The device configuration unit (DEVCFG) and the on-chip analog-to-digital converter (XADC) are also introduced.
- Primary Boot Interfaces – Chosen via Bootstrap Pins
- Device Configuration Unit (DEVCFG)
- Secure/Non-Secure Boot
- Standard Zynq SoC Boot Model – PS is Boot Master
- Programmable Logic Configuration – DMA-Based Device Configuration Block
- Boot and Configuration Time – QSPI
Meeting Performance Goals
Objective: Focuses on Zynq device performance, including DDR access from the PL, DMA considerations, and power control and reduction techniques.
- Zynq SoC Task Implementation Decisions
- Hardware and Software Partitioning
- Bandwidth, Latencies, and Performance Speed in the Zynq SoC
- Zynq Device Power Table
- Running the PS at Lower Frequencies
- Running on One CPU
- PS PLL in Bypass Mode
Zynq SoC Hardware Design
Objective: Discusses the use and configuration of the PS in a hardware design.
- Embedded Hardware Design Tools
- Programmable Logic System on a Chip
- Customizing the Zynq SoC PS
- Clock Generation in the PS
- CPU Clock Generation
- Clocking the PL
- Basic Clock Generator Design
Zynq SoC Software Design
Objective: Explores the software side of the Zynq device.
- Zynq SoC Linux Support
- Standalone Library
- Processing System (PS) Boot Configuration Handoff
- FSBL Support
- Bootgen Tool
- Running and Debugging a Linux Application on the Zynq SoC
Debugging the Zynq SoC
Objective: Explores the software side of the Zynq device.
- Debug Tools Enabled by Arm CoreSight Technology
- Difference Between Debug and Development Boot Stages
- Zynq SoC JTAG Usage
- Vivado Logic Analyzer Components
- Verification and Debugging
- Vivado Logic Analyzer Cores and Capabilities
- QEMU Emulation
- Debugging on the Zynq SoC
Zynq SoC Tools and Reference Designs
Objective: Describes Xilinx-provided reference design platforms, use cases, and third-party operating systems and tools for the Zynq SoC.
- Evaluation Boards
- Reference Designs
- Linux and Other Operating Systems
- Third-Party Tools
