Simulink for Automotive System Design

Learn the fundamentals of Simulink. Explore building and simulating models, developing hierarchy, and sharing designs

Complimentary Services: Post training email support & 1-hr consultation session within 1 month after the course completion!

TechSource Systems Pte Ltd

Course
Highlights

Based on the Simulink for System and Algorithm Modeling outline, this course is for automotive engineers who are new to system and algorithm modeling and teaches attendees how to validate designs using Simulink®. Topics include:

  • Creating and modifying Simulink models and simulating system dynamics
  • Modeling continuous-time, discrete-time, and hybrid systems
  • Modifying solver settings for simulation accuracy and speed
  • Building hierarchy into a Simulink model
  • Creating reusable model components using subsystems, libraries, and model references
TechSource Systems Pte Ltd

Who Should
Attend

Engineers in Automotive industry who are new to the Simulink environment

TechSource Systems Pte Ltd

Course
Prerequisites

MATLAB Fundamentals for Automotive Applications

TechSource Systems Pte Ltd

Course
Benefits

Upon the completion of the course, the participants will be able to:

  • create, modify and simulate dynamic systems using Simulink
  • build continuous, discrete, algebraic and logic systems
  • understand solver setting
  • build hierarchy into Simulink model
  • create reusable model components

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Course Outline

Creating and Simulating a Model

Objective: Create a simple Simulink model, simulate it, and analyze the results.

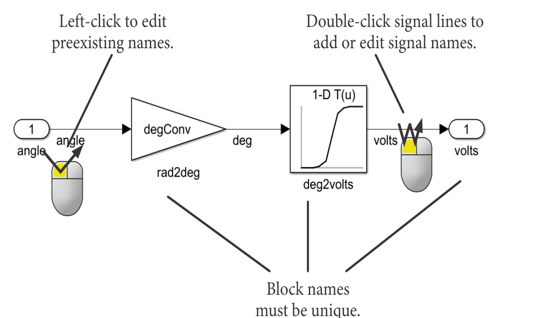

  • Introduction to the Simulink interface
  • Potentiometer system
  • System inputs and outputs

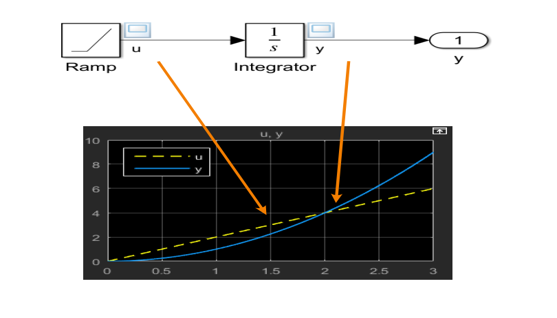

  • Simulation and analysis
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Modeling Programming Constructs

Objective: Model and simulate basic programming constructs in Simulink.

  • Comparisons and decision statements
  • Vector signals
  • PWM conversion system
  • Zero crossings
  • MATLAB Function block

Modeling Discrete Systems

Objective: Model and simulate discrete systems in Simulink.

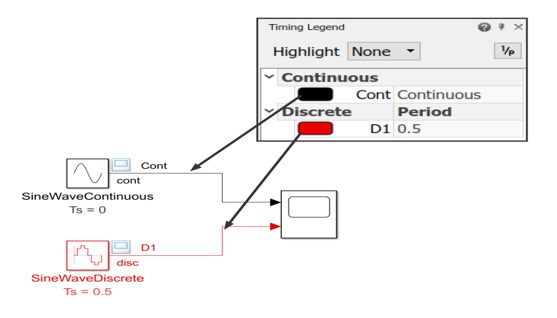

  • Discrete signals and states
  • PI controller system
  • Discrete transfer functions and state-space systems
  • Multirate discrete systems
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Modeling Continuous Systems

Objective: Model and simulate continuous systems in Simulink.

  • Continuous states
  • Throttle system
  • Continuous transfer functions and state-space systems
  • Physical boundaries

Solver Selection

Objective: Select a solver that is appropriate for a given Simulink model.

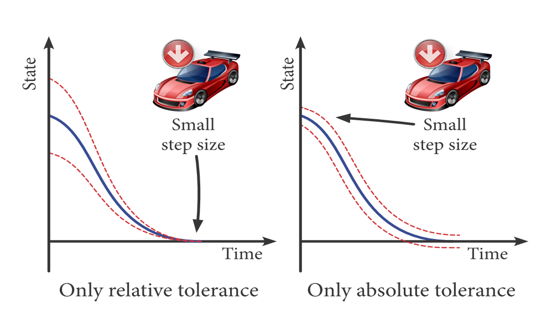

  • Solver behavior
  • System dynamics
  • Discontinuities
  • Algebraic loops
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

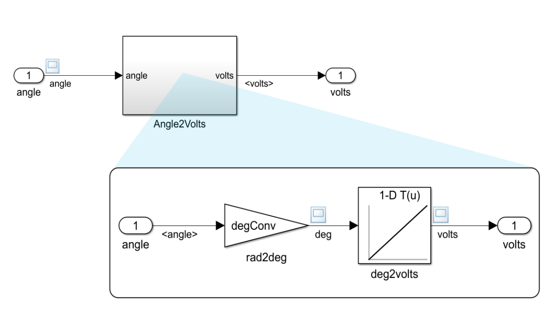

Developing Model Hierarchy

Objective: Use subsystems to combine smaller systems into larger systems.

  • Subsystems
  • Bus signals
  • Masks
  • Getting help
  • Creating and running scripts

Modeling Conditionally Executed Algorithms

Objective: Create subsystems that are executed based on a control signal input.

  • Conditionally executed subsystems
  • Enabled subsystems
  • Triggered subsystems
  • Input validation model
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Combining Models into Diagrams

Objective: Use model referencing to combine models.

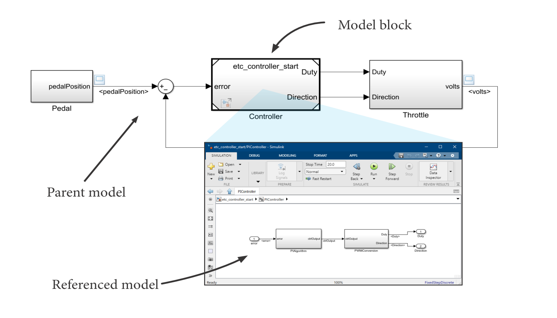

  • Subsystems and model referencing
  • Model referencing workflow
  • Model reference simulation modes
  • Model workspaces
  • Model dependencies

Creating Libraries

Objective: Use libraries to create and distribute custom blocks.

  • Creating and populating libraries

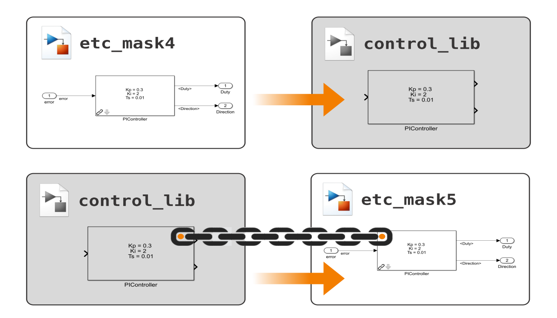

  • Managing library links
  • Adding a library to the Simulink Library Browser
TechSource Systems Pte Ltd
