Signal Integrity and Board Design for Xilinx FPGAs

Learn when and how to apply signal integrity techniques to high-speed interfaces between Xilinx FPGAs and other components.

TechSource Systems Pte Ltd

Course
Highlights

This three-day comprehensive course combines design techniques and methodology with relevant background concepts of high-speed bus and clock design, including transmission line termination, loading, and jitter.

You will work with IBIS models and complete simulations using Mentor Graphics HyperLynx. Other topics include managing PCB effects and on-chip termination. This course balances lecture modules with instructor demonstrations and practical hands-on labs.

TechSource Systems Pte Ltd

Who Should
Attend

Digital designers, board layout designers, or scientists, engineers, and technologists seeking to implement Xilinx solutions. Also end users of Xilinx products who want to understand how to implement high-speed interfaces without incurring the signal integrity problems related to timing, crosstalk, and overshoot or undershoot infractions.

TechSource Systems Pte Ltd

Course
Prerequisites

  • FPGA design experience preferred (Designing FPGAs Using the
    Vivado Design Suite 1 course or equivalent)
  • Familiarity with high-speed PCB concepts
  • Basic knowledge of digital and analog circuit design
  • Vivado™ tool knowledge is helpful
TechSource Systems Pte Ltd

Course
Benefits

After completing this comprehensive training, you will have the
necessary skills to:

  • Describe signal integrity effects
  • Predict and overcome signal integrity challenges
  • Simulate signal integrity effects
  • Verify and derive design rules for the board design
  • Apply signal integrity techniques to high-speed interfaces
    between Xilinx FPGAs and semiconductor circuits
  • Plan your board design under FPGA-specific restrictions
  • Supply the FPGAs with power
  • Handle thermal aspects

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Course Outline

Part 1 - Signal Integrity

TechSource Systems Pte Ltd

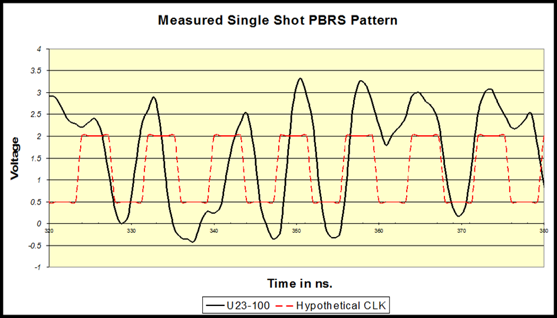

Signal Integrity Introduction

Objective: introduce the Signal Integrity part of the course. Describe transmission lines. Interpret an IBIS model and correct common errors. Work with a signal integrity tool. Apply appropriate transmission line termination. Simulate simple trace structures. Simulate more complex structures like serial I/O or memory interfaces. Evaluate a design for the potential of signal degradation from signal propagation, reflection, crosstalk, and power supply. Recognize and mitigate the effects of signal propagation, reflection, crosstalk, and power supply on signal integrity.

Transmission Lines

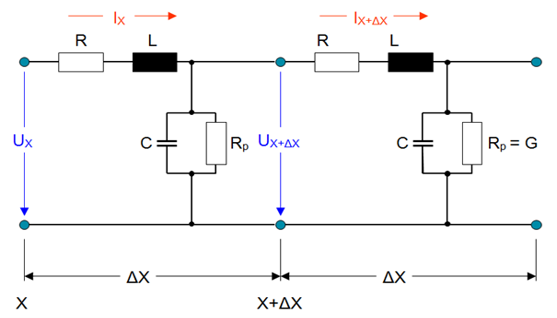

Objective: Describe the nature of a transmission line. Explain the significance of harmonic magnitude. Discuss the importance of rise and fall times. Identify general issues relating to signal integrity design.

  • Critical Trace Length in Time Domain
  • Critical Trace Length in Frequency Domain
  • What is High Speed?
  • Transmission Line
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

IBIS Models and SI Tools

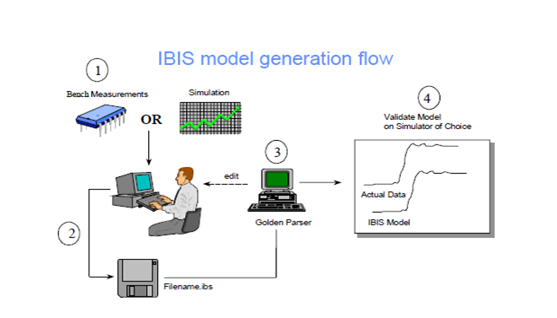

Objective: Describe some modeling and simulation considerations before the discussion on reflection and crosstalk should begin. Describe the IBIS file. Explain the importance of an IBIS editor. Identify the components of an IBIS file. Describe main features of a signal integrity tool. Create simple structures for signal integrity simulation with the HyperLynx tool.

  • IBIS Files
  • IBIS Editor
  • Xilinx IBIS Model
  • SI Tools
  • SI Tool Example: HyperLynx
  • Lab 1: Invoking HyperLynx

Reflections

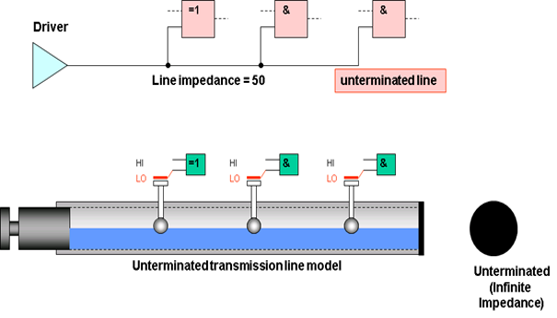

Objective: Discuss reflections on transmission lines. Explain the reflection effect and how to minimize reflection during termination. Describe the effect of reflection. Reduce the reflection by termination. Describe the reflection for different topologies. Simulate reflection effects.

  • Reflection Effects
  • Reflection Calculations
  • Trace Termination
  • Reflection on Different Topologies
  • Lab 2: Reflection Analysis
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Crosstalk

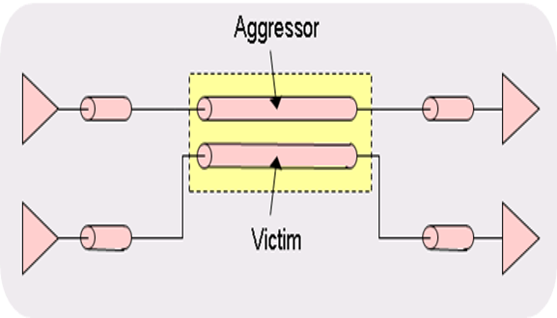

Objective: Describe crosstalk on transmission lines. Explain the crosstalk effect and how to minimize crosstalk by trace geometry or dielectric thickness.

  • Crosstalk Basics
  • Crosstalk Calculations
  • Minimizing Crosstalk
  • Lab 3: Crosstalk Analysis

Part 1 - Signal Integrity (Continue)

TechSource Systems Pte Ltd

Signal Integrity Analysis

Objective: Describe the principle SI analysis methods. Expand your modeling for packages and vias. Describe system-wide SI analysis. Integrate design kits into your environment.

  • Methods for SI Analysis
  • Additional Components for Simulation
  • System Analysis

Power Integrity Issues

Objective: Describe power supply impedance considerations. Describe power supply inductance considerations. Describe the bypassing capacitor function and realization. Handle SI issues for power supply at the board level.

  • Impedance and Bypass Capacitors
  • Bypass Capacitors
  • Power Supply on Board Level
  • Tool Support
TechSource Systems Pte Ltd

Signal Integrity Summary

Objective: Provide a summary of the signal integrity part of the course.

  • Rules for Estimating SI Effects
  • Guidelines for SI Design

Part 2 - Board Design

Board Design Introduction

Objective: Determine the power supply requirements for a PCB. Realize an appropriate power supply on a PCB. Realize configuration solutions on a PCB. Describe the requirements and realizations for signal interfacing. Describe some PCB considerations. Evaluate FPGA thermal aspects for a PCB and design appropriate thermal management. Identify the tools to apply to particular board design issues.

FPGA Power Supply

Objective: Describe power supply impedance considerations. Describe power supply inductance considerations. Describe the bypassing capacitor function and realization. Handle SI issues for power supply at the board level.

  • Power Supply Design Flow
  • Power Supply Estimation
  • Supply Voltage Generation
  • Power Distribution and Bypassing
  • Reference Voltages
  • Serial Transceiver Power Supply
  • XADC Power Supply
  • Lab 4: Power Analysis
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

FPGA Configuration and PCB

Objective: Describe configuration issues that are important in the board design process. Describe the configuration interfaces and their PCB requirements. Describe the configuration memory and their PCB requirements. Identify some typical configuration applications.

  • Configuration Ports
  • Configuration Interfaces
  • Configuration Memory
  • Configuration Applications
  • Board Design Issues

Part 2 - Board Design (Continue)

TechSource Systems Pte Ltd

Signal Interfacing – Part A: Interfacing in General

Objective: Describe FPGA interface options and restrictions for clock and data signals. Identify FPGA interfacing resources. Utilize the I/O resources in your design. Describe the combining of different I/O standards. Identify FPGA clocking resources. Apply the physical clocking restriction to your application.

  • FPGA I/O
  • Combining High-Speed I/O Standards
  • High-Speed Clocks on PCB: FPGA Clock Resources
  • High-Speed Clocks on PCB: Clock Generation
  • High-Speed Clocks on PCB: Clock Distribution
  • High-Speed Clocks on PCB: Board Deskewing
  • DDR3 Memory Interfacing

Signal Interfacing – Part B: FPGA-Specific Interfacing

Objective: Describe typical FPGA I/O special standards. Use FPGA interface resources for board design.

  • I/O Standards
  • On-Chip Termination
  • Banking Rules
  • Serial I/O (Data and Clock Pins)
  • XADC I/O (Analog Inputs)
  • Simultaneous Switching Outputs
  • Lab 5: I/O Pin Planning
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Die and Package

Objective: Use the relationship between chip pad locations and package pin locations for optimal placement of external components. Identify the user pin naming conventions. Evaluate board pin placement for achieving optimum performance.

  • Die and Package Relationship
  • FPGA User Pin Notation
  • FPGA Pin Locations Overview
  • General Pin Placement Considerations

PCB Details

Objective: Review basic information about the materials and processes for PCBs. Describe how to apply the requirements for signal integrity as well as board design to the realization of the PCB through proper application of the various options for layer stackup. Describe PCB technology. Identify some PCB trace characteristics. Describe aspects of FPGA routability.

  • PCB Technology
  • PCB Traces
  • Trace Characteristics
  • Layer Stackup and Rule
  • FPGA Packages and Routability
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Thermal Aspects

Objective: Review basic information about the materials and processes for PCBs. Describe how to apply the requirements for signal integrity as well as board design to the realization of the PCB through proper application of the various options for layer stackup. Describe PCB technology. Identify some PCB trace characteristics. Describe aspects of FPGA routability.

  • FPGA Heat Flow
  • Thermal Resistance
  • Thermal Resistance Calculation
  • Heat Sink Selection
  • Lab 6: Thermal Design

Tools for PCB Planning

Objective: Summarize helpful tools for the board design planning process such as power estimation, simulation of transmission lines, power design, simultaneously switching output (SSO), serial backplane transmission, thermal simulation.

Board Design Summary – PCB Checklist

Objective: Provide a summary of the board design part of the course such as Layers, Bypassing, Simultaneously switching output (SSO), Signal paths, Power supply and management, Design for debug.
