Advanced Features and Techniques of Embedded Systems Design

Learn how to use advanced components of embedded systems design for architecting a complex system in the Zynq System on a Chip (SoC) or MicroBlaze™ soft processor

TechSource Systems Pte Ltd

Course
Highlights

The emphasis of this two days course is on:

  • Developing, debugging, and simulating an embedded system
  • Utilizing memory resources
  • Implementing high-performance DMA
  • Improving designs by using the Vivado IP Integrator
  • Demo boards in which designs are downloaded and verified
TechSource Systems Pte Ltd

Who Should
Attend

Hardware, firmware, and system design engineers who are interested in Xilinx embedded systems development flow

TechSource Systems Pte Ltd

Course
Prerequisites

  • Embedded Systems Development course or experience with
    embedded systems design and the Vivado Design Suite
  • Basic C programming
  • Working knowledge of the Zynq SoC (Cortex™-A9 processor), Zynq UltraScale+ MPSoC processors (Cortex-A53 or Cortex-R5 processors), or MicroBlaze processor
TechSource Systems Pte Ltd

Course
Benefits

After completing this comprehensive training, you will have the necessary skills to:

  • Assemble an advanced embedded system
  • Take advantage of the various features of the Zynq SoC, Zynq UltraScale+ MPSoC, and Cortex and MicroBlaze processors, including the AXI interconnect, and the various memory
    controllers
  • Apply advanced debugging techniques, including the use of the Vivado logic analyzer tool for debugging an embedded system and HDL system simulation of processor-based designs
  • Integrate an interrupt controller and interrupt handler into an embedded design
  • Design a flash memory-based system and boot load from off-chip flash memory
  • Perform HDL-based system simulation

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Course Outline

Overview of Embedded Hardware Development

Objective: Provides an overview of embedded hardware development.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Hardware-Software Flow

Objective: Illustrates how design information generated during the hardware development process is moved into the SDK tool realm.

Software Overview

Objective: Provides a thorough understanding of how the integrated design environment works, including how the compiler and linker behave, basics of makefiles, DMA usage, and variable scope.

  • tools that compose the development environment – Front-end versus back-end toolchains and cross-compilation
  • how memory and DMA relate
  • C-specific concepts relevant to acceleration concepts
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Zynq-7000 All Programmable SoC Architecture Overview

Objective: Overview of the Zynq7000 SoC architecture.

MicroBlaze Processor Architecture Overview

Objective: Overview of the MicroBlaze microprocessor architecture.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Zynq UltraScale+ MPSoC Overview

Objective: Overview of the Zynq UltraScale+ MPSoC architecture.

Debugging Hardware Introduction

Introduces the need and offers a solution for in-chip testing of hardware designs.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Debugging Hardware - Marking Nets

Objective: Reviews the process of marking nets to show which signals should be monitored without having to explicitly instantiate ILA cores.

Hardware-Software Co-Debugging g (Cross-Triggering)

Objective: Describes how to enable events in hardware to pause the software execution and breakpoints in software to cause an ILA trigger.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Memory Types

Objective: Provides a brief overview of the different types of memory available, as well as when one type of memory would be selected over another.

Block RAM Controllers

Objective: – Introduces two versions of block RAM controllers and how and why they are needed.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Static Memory Controllers

Objective: Discusses static memory controllers in general and the SMC implementation in the Zynq-7000 family of devices.

DDRx Memory Operation

Objective: Provides additional details regarding how DDRx memory interfaces with a controller.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Dynamic Memory Controller (Zynq-7000 Device)

Objective: Covers how the DMC is implemented as well as many of its key behaviors.

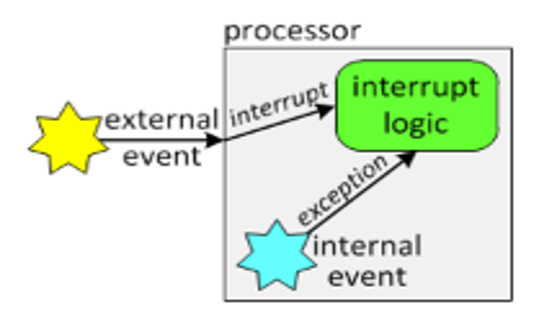

Introduction to Interrupts

Objective: Introduces the concept of interrupts, basic terminology, and generic implementation.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Interrupts and the Zynq-7000 Device

Objective: – Presents the details of how the Zynq-7000 platform uses interrupts from both a hardware and software perspective.

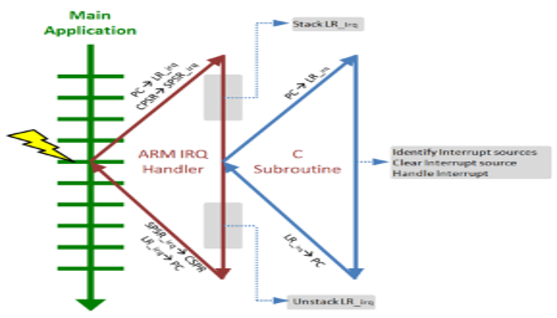

General Interrupt Controller

Objective: Introduces the general interrupt controller (GIC), its features, and some examples of its use.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Interrupts and the MicroBlaze Processor

Objective: Describes how interrupts are handled within the MicroBlaze processor system from a hardware perspective.

AXI Interrupt Controller for the MicroBlaze Processor

Objective: Introduces the AXI Interrupt Controller, which augments the MicroBlaze processor’s interrupt capabilities by managing multiple interrupt sources.

TechSource Systems Pte Ltd

AXI Streaming: Introduction

Objective: – Provides the context and background for the the streaming configuration of the AXI protocol.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

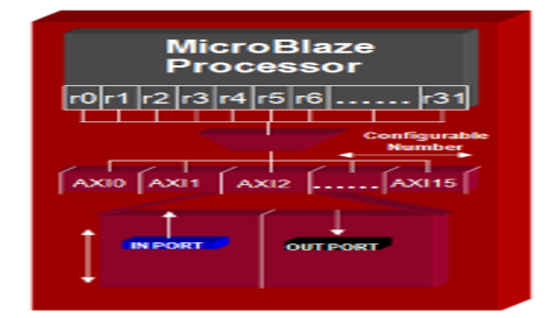

MicroBlaze Processor Streaming Ports

Objective: Describes and illustrates how data streaming is performed using the MicroBlaze processor.

AXI Streaming FIFO

Objective: Introduces the AXI Streaming FIFO and its capabilities.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Connecting AXI IP

Objective: Focuses on the relationships between different types of AXI interfaces and how they can be connected to form hierarchies.

DMA

Objective: Introduces various IP that supports DMA and DMA-like functionality.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Zynq-7000 Device PS-PL Interface

Objective: Discusses the various connection points between the PS and PL.

High-Speed: USB

Objective: Introduces the USB high-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

High-Speed: Gigabit Ethernet

Objective: Introduces the Gigabit Ethernet high-speed peripheral.

Low-Speed: Overview

Objective: Introduces the low-speed peripherals in the Zynq SoC.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed: CAN

Objective: Introduces the CAN low-speed peripheral.

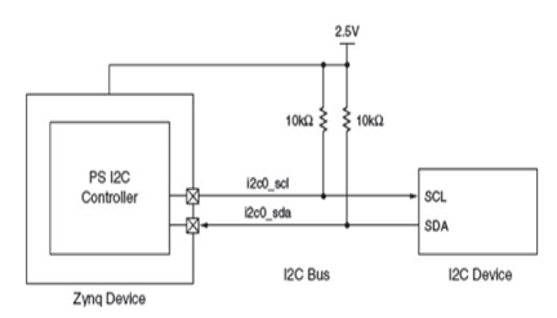

Low-Speed: I2C

Objective: Introduces the I2C low-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed: SD/SDIO

Objective: Introduces the SD/SDIO low-speed peripheral.

Low-Speed: SPI

Objective: Introduces the SPI low-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed: UART

Objective: Introduces the UART low-speed
peripheral.

Utility Logic

Objective: Covers the IP that provides basic logic support within the block design.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Sharing PS Resources (Hardware Perspective)

Objective: Illustrates from the hardware design perspective how a master in the PL can leverage resources within the PS.

Multi-Processor Hardware Architecture

Objective: Addresses some of the mechanisms that a designer can leverage to support cross processor communications.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Caching

Objective: – Introduces the concept of caching and describes how this technique is implemented using the Xilinx processor systems.

Processor Caching and SCLR

Objective: Introduces the concepts behind processing caching and the System-Level Control Register.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Accelerator Coherency Port

Objective: Describes the purpose and general behavior of the accelerator coherency port (ACP).

Booting Flow

Objective: Provides a low-level view of the booting process.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Booting PL

Objective: Introduces the concepts behind configuring the PL at boot.

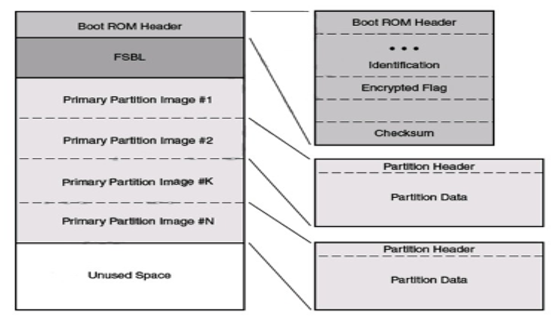

Booting Flash Image Generation

Objective: Introduces the Flash Image Generator tool, which is used to collect up a variety of files and order them properly in the Flash so that the FSBL can correctly read them.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

QEMU: Introduction

Objective: Introduction to the Quick Emulator, which is the tool used to run software for the Zynq device when hardware is not available.
