Accelerating Applications with the Vitis Unified Software Environment

Learn how to develop, debug, and profile new or existing C/C++ and
RTL applications in the Vitis™ unified software environment targeting
both data center (DC) and embedded applications.

TechSource Systems Pte Ltd

Course
Highlights

The emphasis of this three days course is on:

  • Building a software application using the OpenCL™ API to run
    hardware kernels on Alveo™ accelerator cards
  • Building a software application using the OpenCL API and the
    Linux-based Xilinx runtime (XRT) to schedule the hardware
    kernels and control data movement on an embedded processor
    platform
  • Demonstrating the Vitis environment GUI flow and makefile flow
    for both DC and embedded applications
  • Describing the Vitis platform execution model and XRT
  • Describing kernel development using C/C++ and RTL
  • Utilizing the Vitis analyzer tool to analyze reports
  • Explaining the design methodology to optimize a design
TechSource Systems Pte Ltd

Who Should
Attend

Anyone who needs to accelerate their software applications using FPGAs, SoCs (such as Zynq®-7000 SoCs, Zynq UltraScale+™ MPSoCs), and Versal® ACAPs

TechSource Systems Pte Ltd

Course
Prerequisites

  • Basic knowledge of Xilinx FPGA architecture
  • Comfort with the C/C++ programming language
  • Software development flow
TechSource Systems Pte Ltd

Course
Benefits

After completing this comprehensive training, you will have the
necessary skills to:

  • Describe how the FPGA architecture lends itself to parallel
    computing
  • Explain how the Vitis unified software environment helps software
    developers to focus on applications
  • Describe the Vitis (OpenCL API) execution model and XRT native
    APIs
  • Analyze the OpenCL API memory model
  • Create kernels from C, C++, or RTL IP using the RTL Kernel
    Wizard
  • Apply host code optimization and kernel optimization techniques
  • Move data efficiently between kernel and global memory
  • Profile the design using the Vitis analyzer tool

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Course Outline

Vitis Tool Flow

  • Introduction to the Vitis Unified Software Platform – Explains how software/hardware engineers and application
    developers can benefit from the Vitis unified software environment and OpenCL framework.
  • Vitis IDE Tool Overview – Describes the elements of the development flow, such as software emulation, hardware emulation, and system run as well as debugging support for the host code and kernel code.
  • Vitis Command Line Flow – Introduces the Vitis environment makefile flow where the user manages the compilation of host code and kernels.
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Basics of Hardware Acceleration

  • Introduction to Hardware Acceleration – outlines the fundamental aspects of FPGAs, SoCs, and ACAPs that are required to guide the Vitis tool to the best computational architecture for any algorithm.

Alveo Data Center Accelerator Cards

  • Alveo Data Center Accelerator Cards Overview – Describes the Alveo Data Center accelerator cards and lists the advantages of these cards and the available software solutions stack.
  • Getting Started with Alveo Data Center Accelerator Cards – Describes the hardware and software installation procedures for the Alveo Data Center accelerator cards.
TechSource Systems Pte Ltd

Vitis Execution Model and XRT

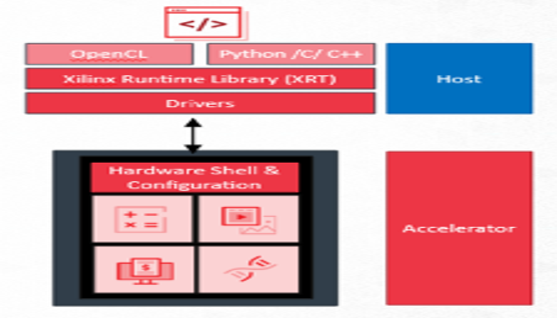

  • Vitis Execution Model and XRT – Describes the XRT and the OpenCL APIs used for setting up the platform, executing the target device, and post-processing.
  • Xilinx Runtime Library (XRT) Native APIs – Describes the XRT native APIs used for opening a device, loading XCLBIN, creating buffers, executing a kernel, and controlling a
    graph.
  • Synchronization – Describes OpenCL synchronization techniques such as events, barriers, blocking write/read, and the benefit of using out-of-order execution.
  • Xilinx Card Utilities – Describes the various tool utilities available with the Xilinx Runtime (XRT), such as the Xilinx board, board management, and xclbin utilities. The various commands and usage of these utilities are also covered.
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

NDRange (Optional)

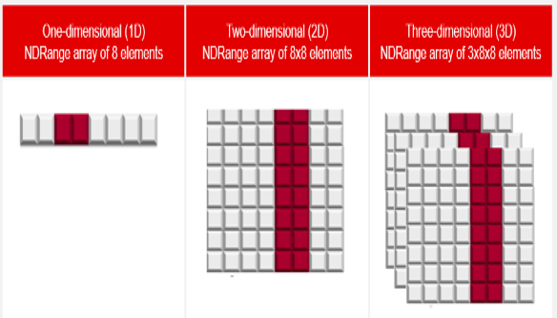

  • Introduction to NDRanges – Explains the basics of NDRange (N dimensional range) and the OpenCL execution model that defines how kernels execute with the NDRange definition.
  • NDRanges – Outlines the host code and kernel code changes with respect to NDRange. Also explains how NDRange works and the best way to represent the work-group size for the FPGA architecture.

Design Analysis

  • Profiling – Describes the different reports generated by the tool and how to view the reports that help to optimize data transfer and kernel optimization using the Vitis analyzer tool.
    • Debugging – Explains the support for debugging host code and kernel code as well as tips to debug the system.
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Kernel Development

  • Introduction to C/C++ based Kernels – Describes the trade-offs between C/C++, OpenCL, and RTL applications and the benefits of C-based kernels.

Kernel Development

  • Using the RTL Kernel Wizard to Reuse Existing IP as Accelerators – Describes how the Vitis unified software development provides RTL kernel developers with a framework to integrate their hardware functions into an application running on a host PC connected to an FPGA via a PCIe® interface.
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Optimization Methodology Guide

  • Optimization Methodology – Describes the recommended flow for optimizing an application in the Vitis unified software development environment.

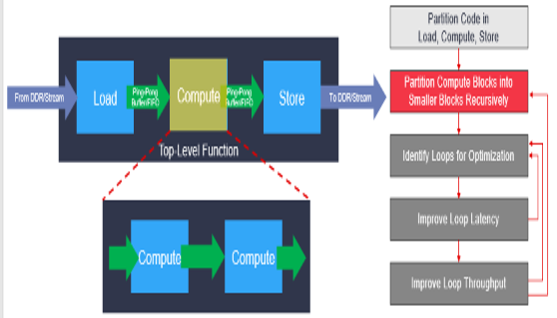

  • C/C++ based Kernel Optimization – Reviews different techniques such as loop unrolling, pipelining, and DATAFLOW.
  • Host Code Optimization – Describes various optimization techniques, such as reducing the overhead of kernel enqueing and optimizing the data transfer between kernels and global memory.
  • Optimizing the Performance of the Design – Illustrates various optimization techniques, such as optimizing the host code and data transfer between kernels and global memory, to improve kernel performance.

Libraries

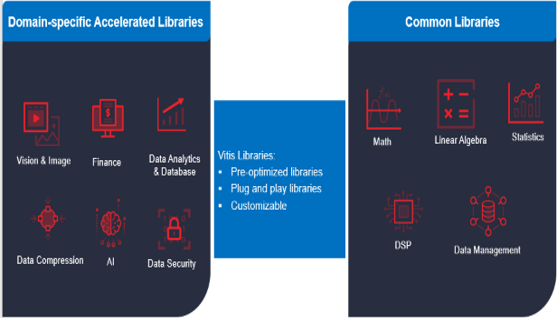

  • Vitis Accelerated Libraries – Describes the Vitis accelerated libraries that are available for domain-specific and common libraries. These libraries are open-source, performance-optimized libraries that offer out-of-the-box acceleration.
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Platform Creation

  • Creating a Vitis Embedded Acceleration Platform (Edge) – Describes the Vitis embedded acceleration platform, which provides product developers an environment for creating embedded software and accelerated applications on heterogeneous platforms based on FPGAs, Zynq SoCs, and Alveo data center cards

Appendix: Alveo Data Center Accelerator Cards

  • Alveo Accelerator Card Ecosystem Partner Solutions [Optional] – Outlines the partner solutions available in the cloud and on premises for Alveo Data Center accelerator cards.
  • Xilinx Real-Time Video Server Appliance [Optional] -Describes the Xilinx Real-Time Video Server appliance reference architectures, the optimized software solution stack for video applications, and various features offered by Alveo card live transcoding.
