Simulink

Simulation and
Model‑Based Design

Design and simulate your system in Simulink before moving to hardware. Explore and implement designs that you wouldn’t otherwise consider – without having to write C, C++, or HDL code.

Model-Based Design: From Concept to Code

Model and Simulate Your System

Explore a wide design space by modeling the system under test and the physical plant. Your entire team can use one multi-domain environment to simulate how all parts of the system behave.

Test Early and Often

Reduce expensive prototypes by testing your system under conditions that are otherwise too risky or time-consuming to consider. Validate your design with hardware-in-the-loop testing and rapid prototyping. Maintain traceability from requirements to design to code.

Automatically Generate Code

Instead of writing thousands of lines of code by hand, automatically generate production-quality C and HDL code that behaves the same way as the model you created in Simulink. Then deploy it directly onto your embedded processor or FPGA/ASIC.

Do more with Simulink

Smart Editing

Improve your model’s appearance by hiding default block names. You can also quickly group signals, add inports and outports to blocks, and more.

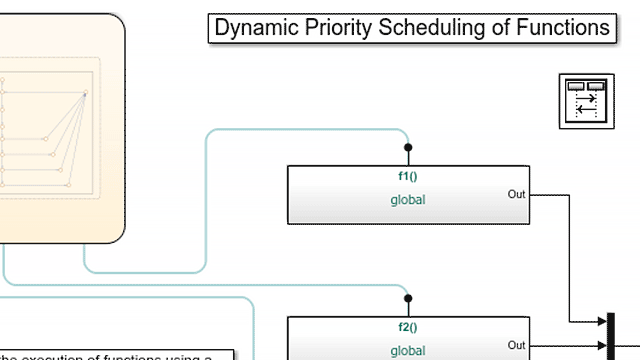

Scheduling

Explore a wide design space by modeling the system under test and the physical plant. Your entire team can use one multi-domain environment to simulate how all parts of the system behave.

Performance

Get simulation results fast using shared model artifacts, quickly build your top-level model, and use the automatic solver option to set up your model.

Engineers and Scientists Worldwide Rely on Simulink

“When we do 5G prototyping design and development, we build the whole air access link-level simulation using MATLAB and Simulink, and import the parameters of this model – from the antenna to the new waveform – from the field testing… We can see the whole system’s performance, and identify potential issues.”

Director of Algorithm Architecture and Design

Kevin Law

HUAWEI

“By including circuit-level simulation results in our Simulink models we can simulate millions of cycles with the accuracy needed to account for noise and other transient effects. Simulink is the only tool fast enough for our jitter-tolerance simulations.”

Vice President

William Walker

Fujitsu Laboratories of America

“A primary benefit of using MATLAB and Simulink in our research is the availability of toolboxes for computer vision, image processing, and control system development. All the tools we need are in one environment that is easily integrated with other software for robotics and automation systems.”

head of the Industrial and Systems Engineering department

Dr. John Wen

Rensselaer Polytechnic Institute

           Get a Free Trail

30 days of exploration at your fingertips.

Ready to Buy

Get pricing information and explore related products.

Are you a Student

Get MATLAB and Simulink student software.
