Zynq UltraScale+ MPSoC for the System Architect

Provides system architects with an overview of
the capabilities and support for the Zynq® UltraScale+™ MPSoC family.

TechSource Systems Pte Ltd

Course
Highlights

This two-day course provides system architects with an overview of the capabilities and support for the Zynq® UltraScale+™ MPSoC family.

The emphasis is on:

  • Utilizing power management strategies effectively
  • Leveraging the platform management unit (PMU) capabilities
  • Running the system securely and safely
  • Reviewing the high-level architecture of the devices
  • Identifying appropriate boot sequences

What’s New for 2021.1

  • All labs have been updated to the latest software versions
TechSource Systems Pte Ltd

Who Should
Attend

System architects interested in understanding the capabilities and ecosystem of the Zynq UltraScale+ MPSoC device.

TechSource Systems Pte Ltd

Course
Prerequisites

  • Suggested: Understanding of the Zynq-7000 architecture
  • Familiarity with embedded operating system
TechSource Systems Pte Ltd

Course
Benefits

After completing this comprehensive training, you will have the necessary skills to:

  • Effectively use power management strategies and leverage the capabilities of the platform management unit (PMU)
  • Identify mechanisms to secure and safely run the system
  • Outline the high-level architecture of the devices
  • Define the boot sequences appropriate to the needs of the system

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Course Outline

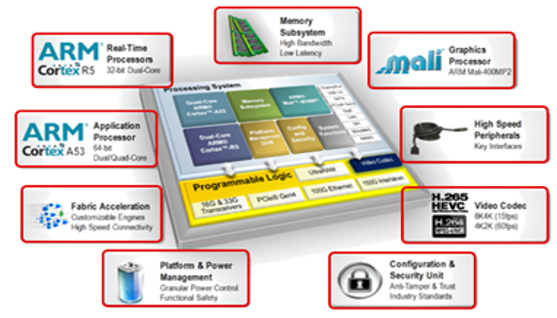

Zynq UltraScale+ MPSoC Overview

Objective: Overview of the Zynq UltraScale+ MPSoC device.

  • Architectural Overview

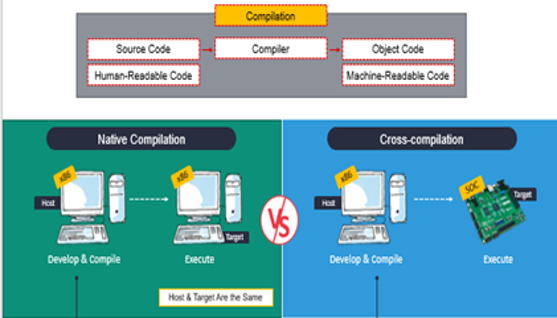

  • Software Environments
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

HW-SW Virtualization

Objective: Covers the hardware and software elements of virtualization. The lab demonstrate how hypervisors can be used.

  • Hypervisors: Introduction
  • Virtualization Hardware Support

QEMU

Objective: Introduction to the Quick Emulator, which is the tool used to run software for the Zynq UltraScale+ MPSoC device when hardware
is not available.

  • Introduction
  • Application Development and Debugging
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

MPSoC Security and Software

Objective: Defines what safety and security is in the context of embedded systems and introduces several standards.

  • Safety Overview
  • Security Overview
  • Isolation Mechanisms
  • Arm TrustZone Technology Overview
  • Memory Protection Unit
  • Peripheral Protection Unit
  • System Memory Management Unity

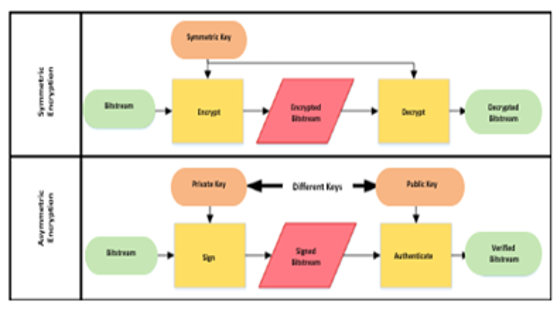

  • Security Features
  • Secure Methodology and Run-Time Security

Power Management

Objective: Overview of the PMU and the power-saving features of the device.

  • Overview

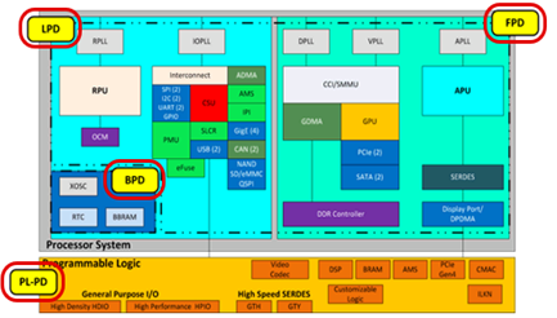

  • Power Domains
  • Power Estimation
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

System Coherency

Objective: Learn how information is synchronized within the API and through the ACE/AXI ports.

  • Cache Coherency
  • Coherent Interfaces

DDR and QoS

Objective: Understand how DDR can be configured to provide the best performance for your system.

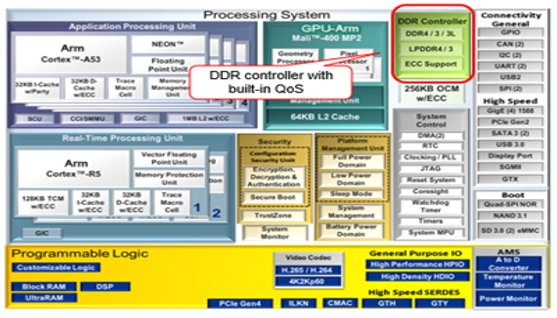

  • DDR
  • Quality of Service
TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Booting

Objective: How to implement the embedded system, including the boot process and boot image creation. Also how to detect a failed boot.

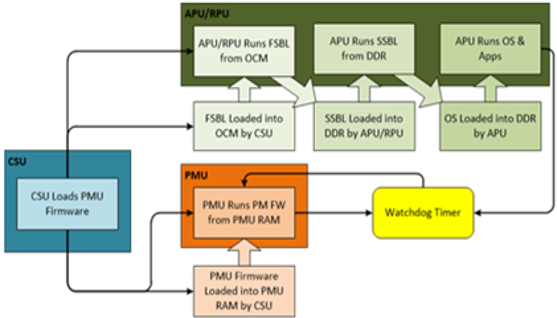

  • Boot and Configuration
  • Boot Image
  • Detecting a Failed Boot

Zynq UltraScale+ MPSoC Ecosystem Support

Objective: Overview of supported operating systems, software stacks, hypervisors, etc.

  • Overview
