Advanced Features and Techniques of Embedded Systems Software Design

Software design engineers will learn how to make full use of the components available in the Zynq® System on a Chip (SoC) processing system (PS).

TechSource Systems Pte Ltd

Course
Highlights

The emphasis of this one day course is on:

  • Implementing an effective Zynq SoC boot design methodology
  • Creating an FSBL image for flash
  • Utilizing advanced Cortex™-A9 processor services
  • Analyzing the DMA controller in the Zynq SoC
  • Examining the various library services for peripherals such as Ethernet and USB controllers
TechSource Systems Pte Ltd

Who Should
Attend

Software design engineers interested in fully using the Zynq extensible processing platform

TechSource Systems Pte Ltd

Course
Prerequisites

  • Embedded Systems Software Design or equivalent knowledge
  • C or C++ programming experience
  • Experience developing software for embedded processor applications
  • Conceptual understanding of embedded processing systems, including device drivers, interrupt routines, Xilinx Standalone library services, user applications, and boot loader operation
TechSource Systems Pte Ltd

Course
Benefits

After completing this comprehensive training, you will have the necessary skills to:

  • Implement an effective Zynq SoC boot design methodology
  • Create an appropriate FSBL image for flash simulation
  • Identify advanced Cortex™-A9 processor services for fully utilizing the capabilities of the Zynq SoC
  • Analyze the operation and capabilities of the DMA controller in the Zynq SoC
  • Examine the various Standalone library services and performance capabilities of the Ethernet and USB controllers in the Zynq SoC
  • Describe the Standalone library services available for low-speed peripherals that are contained in the Zynq SoC PS

Partners

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

TechSource Systems is MathWorks Authorised Reseller and Training Partner

Upcoming Program

  • Please keep me posted on the next schedule
  • Please contact me to arrange customized/ in-house training

Advanced Features and Techniques of Embedded Systems Software Design

Booting Overview

Objective: Introduces the main points to how booting a processor is handled in Zynq devices and MicroBlaze processors.

TechSource Systems Pte Ltd

Boot Memory Technologies

Objective: Introduces the main points of the memories that can be booted or executed from.

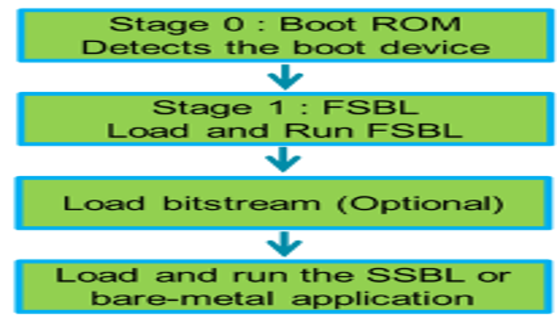

Booting Flow

Objective: Provides a low-level view of the booting process.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Booting PS Processors

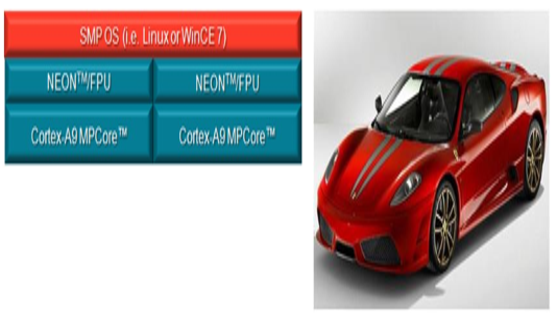

Objective: Introduces the concepts behind a single-core boot, a dual-core boot, and symmetric or asymmetric processing.

Booting PL

Objective: Introduces the concepts behind configuring the PL at boot.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Secure Boot

Objective: Introduces the concepts behind secure booting.

Booting FSBL

Objective: Introduces the First Stage Boot Loader (FSBL).

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

General Interrupt Controller

Objective: Introduces the general interrupt controller (GIC), its features, and some examples of its use.

Processor Caching and SCLR

Objective: Introduces the concepts behind processing caching and the System-Level Control Register.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

NEON Co-Processing

Objective: Introduces the concepts behind the NEON co-processor.

DMA Introduction and Features

Objective: Introduces the direct memory access controller.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

DMA Block Design and Interrupts

Objective: Introduces the DMA block design and the DMA interrupts.

DMA Read and Write

Objective: Introduces the concepts behind DMA reading and writing.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

High-Speed Peripherals Gigabit Ethernet

Objective: Introduces the Gigabit Ethernet high-speed peripheral.

High-Speed Peripherals USB

Objective: Introduces the USB high-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed Peripherals Overview

Objective: Introduces the low-speed peripherals in the Zynq SoC.

Low-Speed Peripherals UART

Objective: Introduces the UART low-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed Peripherals CAN

Objective: Introduces the CAN low-speed peripheral.

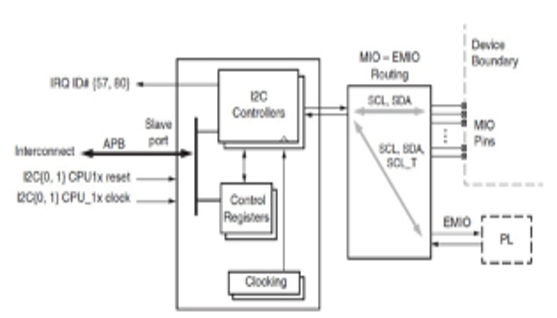

Low-Speed Peripherals I2C

Objective: Introduces the I2C low-speed peripheral.

TechSource Systems Pte Ltd
TechSource Systems Pte Ltd

Low-Speed Peripherals SPI

Objective: Introduces the SPI low-speed peripheral.

Low-Speed Peripherals SD-SDIO

Objective: Introduces the SD/SDIO low-speed peripheral.

TechSource Systems Pte Ltd
